Frequency meter on PCB

Ordered print-circuit board for frequency meter and received it recently. Here is top.

IMG_1688

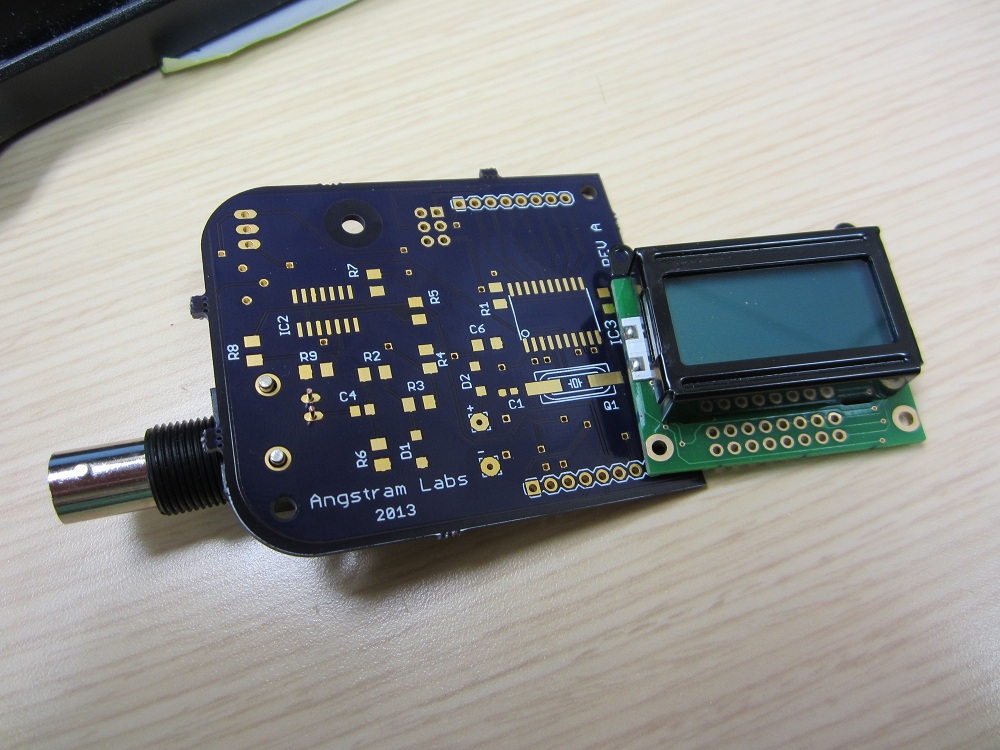

Here is small 8×2 LCD I am planning to use.IMG_1690

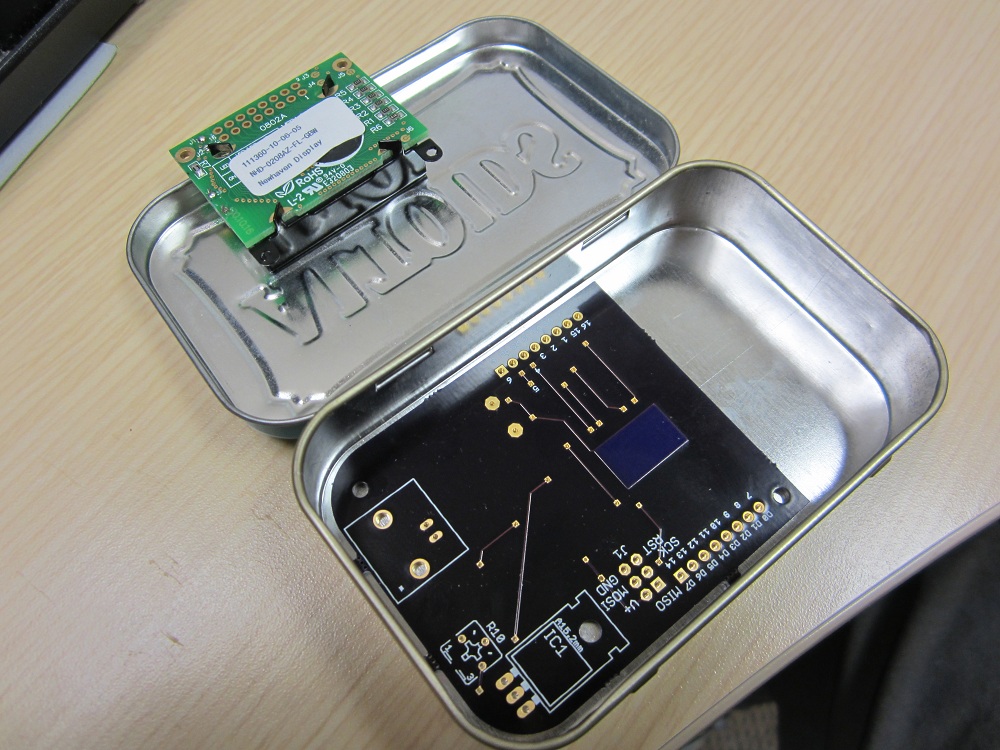

Potential enclosure, just empty Altoids box. You can see place for 9V battery on the right.IMG_1692

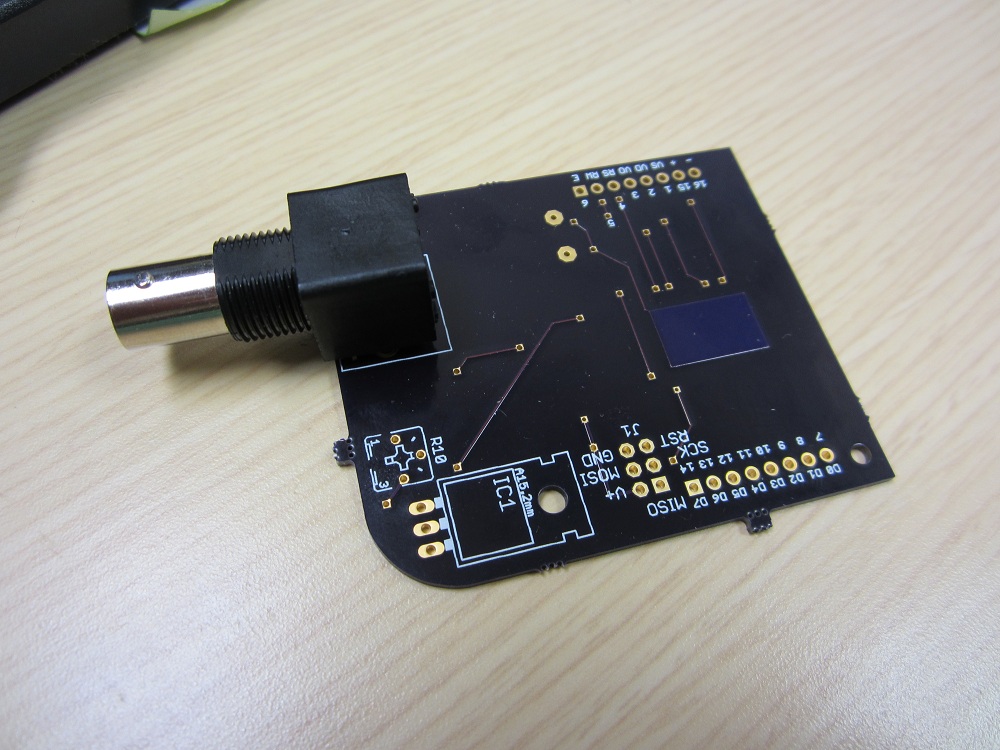

Here is bottom of PCB.IMG_1691
